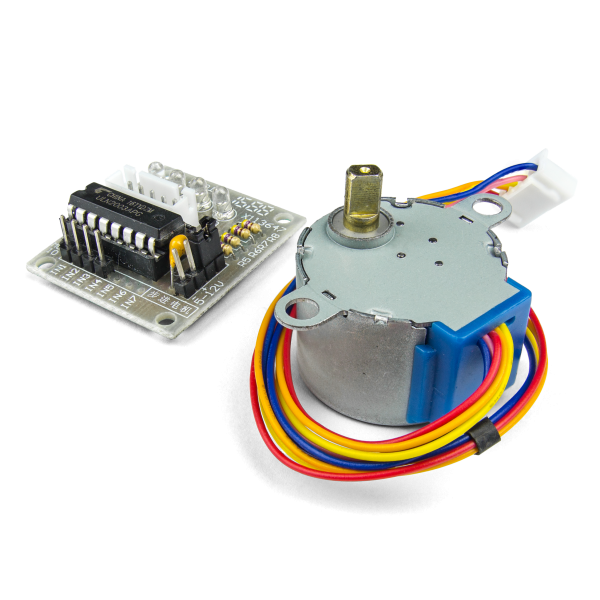

ULN2003 Stepper Motor Driver Board

7-ch Darlington Sink Driver — .6A@50v peak

The jumper is for on/off.

The ULN2003 is one of the most common motor driver ICs that houses an array of 7 Darlington transistor pairs, each capable of driving loads up to 500mA and 50V.
